Applications of Iridium-Tantalum-Titanium Anode
Iridium-tantalum-titanium anode, as core electrode materials in the electrochemical industry, rely on their high catalytic activity for the oxygen evolution reaction and long service life characteristics, and have broad application prospects in fields such as electrolytic copper foil, continuous galvanizing of steel plates, non-ferrous metal extraction, and wastewater treatment.
In the field of non-ferrous metal electrolysis, iridium-tantalum-titanium anodes achieve a current efficiency of over 95% in copper electrolytic refining, which is 15% higher than that of lead-based anodes, and the amount of anode sludge generated is reduced by 40%. In terms of wastewater treatment, iridium-tantalum-titanium anode have an 85% removal rate of Cr(VI) in chromium-containing wastewater, and no significant adsorption of Cr(III) is detected on the coating surface, avoiding the risk of secondary pollution. The doping of tantalum improves the electron transfer efficiency and structural stability of the coating by stabilizing the IrO₂ crystal phase structure and inhibiting the phase transition of Ta₂O₅, while the gradient coating design effectively balances conductivity and coating uniformity.
By optimizing the system’s preparation process and combining it with the thermal decomposition method, precise control of the coating composition and gradient design of the microstructure have been achieved, significantly improving the electrolyte penetration efficiency and the active area of electrochemical reactions.

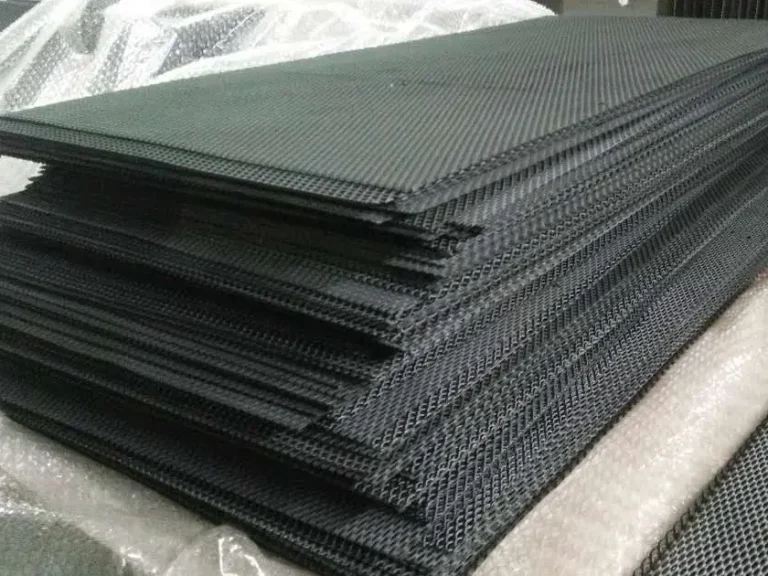

Iridium-Tantalum-Titanium Anode
As an important part of modern manufacturing, the electrochemical industry always focuses on optimizing its core processes around improving the performance of electrode materials. Iridium-tantalum-titanium anodes, with their unique physical and chemical properties, have become representative of key electrode materials in the field of electrolysis. The iridium-tantalum oxide layer formed on their surface exhibits excellent corrosion resistance and oxygen evolution catalytic activity. Especially in electrolytic environments with strong acidity or halogen ions, it can effectively inhibit anode passivation and extend service life. With the development of non-ferrous metal electrolysis technology, iridium-tantalum-titanium anode have performed excellently in the hydrometallurgy of metals such as nickel and cobalt. By optimizing the proportion of precious metal oxides and designing the coating structure, they have successfully solved the problem of anode corrosion in sulfate mixed systems, promoting the industrialization process of high-purity metal production.
Substrate | Gr1/Gr2 |
Coating | IrO₂-Ta₂O₅ |
Shape | Mesh,plate, rod, wire, tube, strip (processed according to drawings) |
Oxygen evolution potential | Approximately 1.45V (vs. SCE) |
Electrochemical Theory of Iridium-Tantalum-Titanium Anode
The basic theory of electrochemistry is the core framework for understanding the working mechanism of iridium-tantalum-titanium anodes. The involved electrode reaction kinetics and interfacial processes have a decisive impact on material performance. In an electrochemical system, the anode serves as the site where oxidation reactions occur, and the rate of electrochemical reactions taking place on its surface directly determines the stability and catalytic activity of the material. The electrode reaction process generally follows the Nernst equation and the Tafel equation. By analyzing the relationship between electrode potential and reactant concentration, the behavioral characteristics of materials in specific electrolytic environments can be accurately predicted.
As the surface functional layer of titanium-based anodes, the iridium-tantalum coating, with its multi-component composite structure, significantly optimizes the electronic conductivity and corrosion resistance of the electrode, which is closely related to the oxide passivation film formed on its surface. During the electrochemical polarization process, the combined effect of activation polarization, concentration polarization, and ohmic polarization will cause the anode potential to deviate from the equilibrium state. However, the iridium-tantalum coating effectively inhibits the intensification of polarization by reducing the reaction activation energy and improving mass transfer efficiency. The synergistic effect between the titanium substrate and the iridium-tantalum coating enables it to maintain stable electrochemical activity under harsh conditions such as strong acidity and high temperature, which benefits from the high oxidation state stability of iridium and the protective effect of the dense oxide layer of tantalum.
The microstructural design of electrode catalysts has a significant impact on electrochemical performance. Iridium, as the main active component, can form an IrO₂ crystalline phase during the anodic oxidation process, and its semiconductor properties and porous structure provide efficient channels for electron transport and ion diffusion. The introduction of tantalum enhances the corrosion resistance and mechanical bonding strength of the coating by forming a Ta₂O₅ dielectric layer, while also regulating the interfacial charge distribution. This multi-component synergistic effect enables iridium-tantalum coatings to exhibit excellent catalytic activity and stability in typical electrochemical processes such as the oxygen evolution reaction (OER). The thickness, composition ratio, and surface morphology of iridium-tantalum coatings directly affect their double-layer capacitance and charge transfer resistance, and precise control of the coating structure can be achieved by adjusting the thermal decomposition process parameters.
Electrochemical kinetic models provide a theoretical basis for optimizing the performance of titanium anodes. According to the Tafel equation, the Tafel slope of the oxygen evolution reaction can reflect the transformation of the rate-determining step of the reaction. Iridium-tantalum coatings, by optimizing the density of active sites and electronic structure, make the reaction pathway tend to follow a more efficient adsorption-desorption mechanism. In addition, the micro-roughness of the coating surface directly affects mass transfer efficiency; excessively high ion diffusion resistance will lead to intensified concentration polarization. Therefore, it is necessary to balance structural parameters by regulating sintering temperature and doping elements. In practical applications, the polarization curves and impedance spectroscopy analysis of titanium anodes can directly characterize their electrochemical properties. For example, in the trivalent chromium electroplating system, iridium-tantalum coatings reduce the formation rate of anode sludge by inhibiting the generation of hexavalent chromium, which is closely related to the coating’s oxidation selectivity for Cr³⁺. This selective catalytic behavior not only improves the stability of the electroplating process but also enhances resource utilization efficiency by reducing side reactions.
Characteristics of Iridium-Tantalum-Titanium Anodes
The physicochemical properties of iridium-tantalum-titanium anodes and their influence on the performance of titanium anodes are mainly reflected in the synergistic effect between their component characteristics and structure. As precious metal elements, iridium (Ir) and tantalum (Ta) each have unique physicochemical advantages. Iridium has a high melting point (approximately 2443°C), excellent high-temperature oxidation resistance, and electrochemical stability, and can effectively inhibit anode passivation especially in strongly oxidizing environments. Tantalum is famous for its excellent corrosion resistance, and the dense oxide film formed on its surface can significantly reduce the corrosion rate of the base material. The composite coating formed by the chemical bonding of the two can make up for the deficiencies of a single metal through the synergistic effect between components, thereby improving the comprehensive performance of the titanium anode.
From the perspective of physical properties, the matching degree between the lattice structure of the iridium-tantalum coating and the titanium substrate is a key factor affecting the bonding strength of the iridium-tantalum-titanium anode. There is a certain difference in lattice constants between the face-centered cubic structure of iridium and the close-packed hexagonal structure of titanium. However, the addition of tantalum can effectively adjust the lattice parameters of the coating and reduce interfacial stress. The incorporation of tantalum also enhances the mechanical toughness of the coating, making it less prone to microcrack propagation when subjected to periodic volume changes during electrochemical reactions.
In terms of electrochemical performance, iridium, as the main component of the coating, significantly reduces the overpotential of the oxygen evolution reaction (OER) by forming an IrO₂ oxide layer. The central position and electronic structure of iridium enable it to maintain stable catalytic activity in both acidic and alkaline media, while the incorporation of tantalum further optimizes the electrical conductivity and structural stability of the oxide. The anodic oxidation product of tantalum, Ta₂O₅, has a high dielectric constant, which can form a stable electric double layer on the surface of the iridium-tantalum-titanium anode and reduce the charge transfer resistance.
Failure of iridium-tantalum-titanium anode
Iridium-tantalum-titanium anode, as high-performance electrode materials, are widely used in fields such as electrolytic copper foil production, cathode protection, water treatment, and metal electroplating. They face complex failure issues during long-term operation, which directly affect their service life and electrolysis efficiency. The failure mechanism involves the synergistic effect of multiple factors including electrochemistry, mechanics, and material structure, requiring systematic analysis to clarify the underlying mechanisms and corresponding countermeasures. From an electrochemical perspective, the iridium-tantalum coating is prone to oxidation layer decomposition under high potentials. The composite coating composed of IrO₂ and Ta₂O₅ withstands a strongly oxidizing environment during anode reactions, leading to the formation of amorphous or low-conductivity intermediate products on the surface, such as Ir₄O₉ or TaO₂²⁻. The accumulation of these substances significantly increases the interface resistance and causes local overpotential elevation, ultimately resulting in partial peeling of the coating. In addition, the penetration of ions such as Cl⁻ and OH⁻ in the electrolyte may trigger the lattice oxygen evolution reaction (EOR), generating oxygen vacancy defects in the iridium-tantalum-titanium anode and exacerbating structural degradation.
Comparison with other anodes
There are significant differences in performance between iridium-tantalum-titanium anodes and other types of anodes. Taking lead anodes as an example, they are prone to dissolution in acidic media, leading to solution contamination and frequent replacement. In contrast, iridium-tantalum-titanium anodes significantly enhance their corrosion resistance by depositing an IrO₂-Ta₂O₅ composite oxide on the titanium substrate.
Compared with pure iridium-coated anodes, the addition of Ta₂O₅ increases the electrochemical active area of the coating by 40% and the oxygen vacancy concentration by 25%, thereby reducing the reaction activation energy.
