Why Choose Our Titanium Anodes?
- Stable electrode spacing for consistent copper foil quality
- Lower energy consumption for cost-effective production
- Reusable through coating reapplication, reducing waste
- High resistance to corrosion in harsh electrolytic environments
- Extended service life even under high current densities
Key Benefits
6-8 Months
Service Life
10,000 A/m²
Max Current Density
40,000 KA/H
Lifetime Capacity
Anode Types
Our titanium anodes are available in two specialized types to meet diverse production requirements

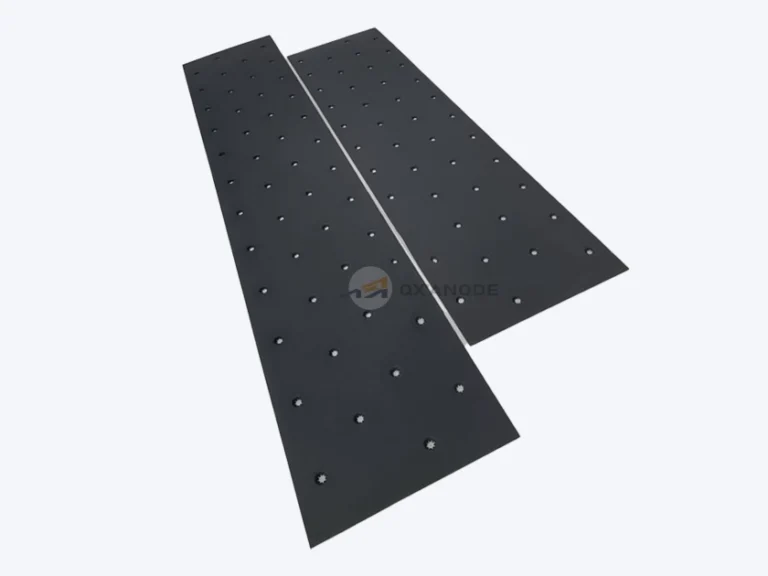

Inlaid Anode
- Base Material:1mm Titanium Plate
- Processing:Precision-machined quincunx counterbores
- Key Feature:Optimal surface area for efficient electrolysis

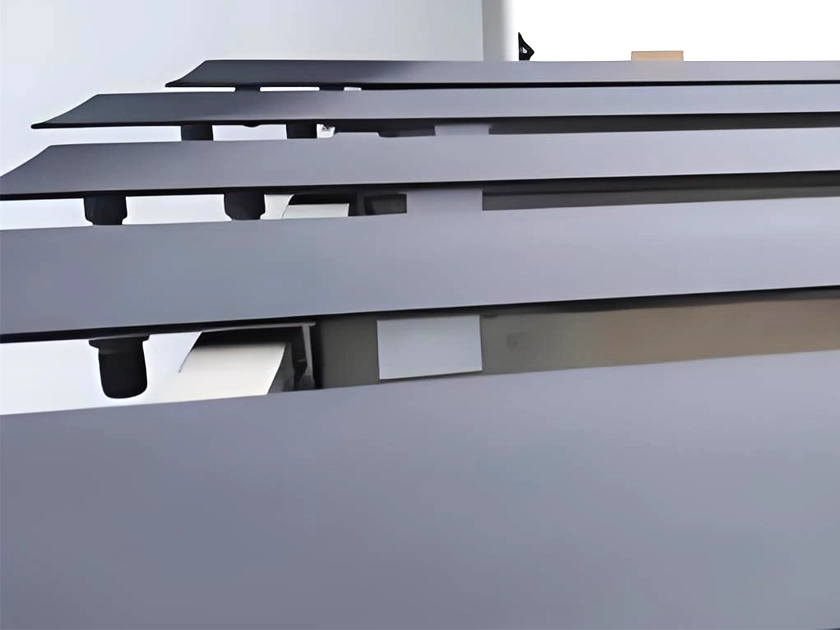

Back-Pull Anode
- Base Material:6mm Titanium Plate
- Processing:welded with conductive studs
- Key Feature:To adapt to high-current applications
Operating Specifications
Our titanium anodes are engineered to perform under specific conditions for optimal results.
Electrolyte Conditions
Operational Parameters
Anode Dimensions
6 mm
Thickness
280 mm
Width
1,375 mm
Length
Technical Parameters
Detailed specifications for our titanium anodes in electrolytic copper foil production.
Copper Foil Titanium Anode Operating Conditions
Electrolyte Composition
Copper Ion (Cu²⁺) Concentration:>120 g/LOperational Parameters
Coating Titanium Anode Specifications
Material & Structure
Technical Advantages
Performance and Advantages
Electrocatalytic Performance
- Increased micro-roughness of titanium substrate for larger effective catalytic area
- Optimized electrochemical properties through addition of base metal oxides
- Lower cell voltage leading to significant energy savings
Durability Features
- Advanced sintering process to minimize surface cracks
- Resistant to oxygen penetration and TiO₂ passive layer formation
- Extended service life under high current density operations
Application in Copper Foil Production
Our titanium anodes are integral to the electrolytic copper foil manufacturing process, ensuring high-quality product output.
Electrolytic Copper Foil Production Process
Electrolytic copper foil is produced by electroplating copper ions onto a rotating cathode drum from a copper sulfate solution. Our titanium anodes play a critical role in this process by providing a stable and efficient source of electrical current.
- Copper Deposition
Copper ions from the electrolyte are deposited onto the cathode drum, forming a continuous foil. - Anode Performance
Our titanium anodes maintain stable electrode spacing and provide consistent current distribution for uniform foil thickness. - Energy Efficiency
Copper ions from the electrolyte are deposited onto the cathode drum, forming a continuous foil. - Reusability
Copper ions from the electrolyte are deposited onto the cathode drum, forming a continuous foil.
