Technical advantages of titanium anode for electrophoretic coating
Titanium anode for electrophoretic coating, with their excellent corrosion resistance, electrical conductivity, and mechanical strength, enhance the stability of the coating process through a surface mixed metal oxide coating.
The titanium anode for electrophoretic coating optimizes the electric field distribution and reduces local discharge phenomena, thereby improving the uniformity of electrophoretic coating and production efficiency. The application advantages of titanium anodes in electrophoretic coating are reflected in multiple aspects: in terms of coating quality, the titanium anode for electrophoretic coating significantly enhances the uniformity and adhesion of electrophoretic coating. Experimental data shows that the standard deviation of electrophoretic coating thickness is 15% lower than that of traditional anodes, and surface defects are reduced by 45%; in terms of energy consumption and cost, the energy consumption per unit area of the titanium anode for electrophoretic coating is reduced by 15%-20%, the annual average material cost is 16% lower than that of lead anodes, and the whole-life cycle cost is reduced by 22%; in comparison with traditional anodes, the titanium anode for electrophoretic coating performs excellently in electrochemical performance, service life and electrophoretic coating quality. Its indicators such as hydrogen evolution potential and corrosion current density are better than those of stainless steel anodes, and the throwing power is increased by 12%.
Electrophoretic coating technology
Electrophoretic coating technology, as an important means of surface treatment, its principle is based on the physical and chemical process in which electric field drives charged particles to migrate directionally and deposit on the surface of the substrate to form a protective coating. By precisely controlling parameters such as electric field strength, solution pH value, and temperature, this technology can achieve accurate regulation of the thickness, uniformity, and adhesion of electrophoretic coatings, and shows significant advantages especially in the coating of workpieces with complex shapes. Since its commercial application in the 1960s, electrophoretic coating has been widely used in fields such as automobile bodies, household appliance casings, and precision instruments due to its high efficiency, low pollution, and excellent anti-corrosion performance. In traditional electrophoretic processes, the selection of anode materials has long restricted the quality of electrophoretic coatings and the service life of equipment. Stainless steel anodes are prone to corrosion failure in chloride ion erosion environments, leading to fluctuations in coating quality and increased production costs. This technical bottleneck has promoted the research and development of new corrosion-resistant anode materials. Titanium anode for electrophoretic coating, with their excellent corrosion resistance, electrical conductivity, and mechanical strength, have gradually become electrode materials in the field of electrophoretic coating.
The breakthrough in the application of titanium anode for electrophoretic coating in electrophoretic painting began with their performance surpassing that of traditional materials. Compared to stainless steel anodes, which have a short service life of only 1-3 months in a cathodic electrophoresis environment, mixed metal oxide titanium anodes effectively resist corrosion from chloride ions in electrophoretic paint through their surface activation layer. Their stable metal oxide film structure not only inhibits the dissolution of the metal substrate but also maintains the uniformity of the electric field distribution, thereby ensuring the compactness and uniformity of the electrophoretic coating.

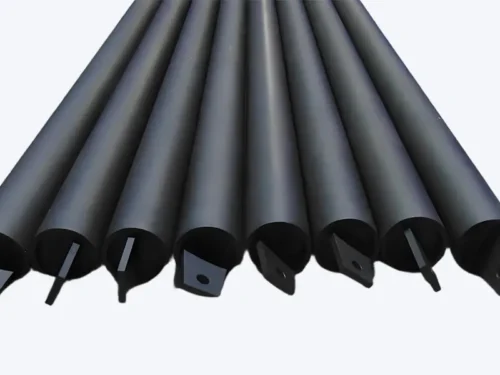

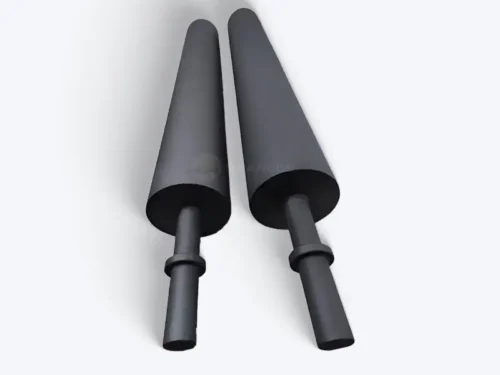

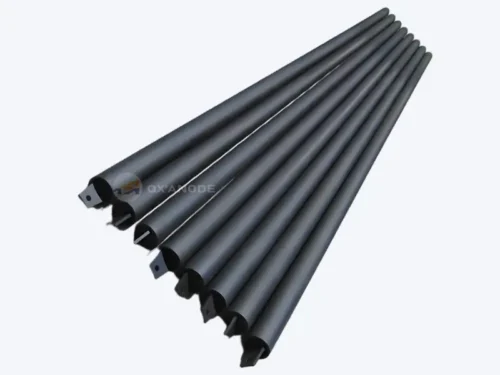

Titanium anode for electrophoretic coating
The low oxygen evolution potential characteristic of titanium anode used in electrophoretic coating reduces the negative impact of oxygen evolution on coating adhesion, further improving the stability of the coating process. This performance advantage is particularly prominent in continuous production scenarios.
The structural design and preparation process of titanium anode for electrophoretic coating have a decisive impact on the electrophoretic coating effect. By regulating the uniformity of oxides on the surface of titanium anodes, the electric field distribution can be further optimized and local discharge phenomena can be reduced, thereby improving the production efficiency of electrophoretic coating.
Shape | Titanium plate / Titanium tube |
Coating | RuO₂-IrO₂/IrO₂-Ta₂O₅ |
Material | Gr1/Gr2 |
Content of precious metals | 10~12g/M2 |
The structural design and preparation process of titanium anode for electrophoretic coating have a decisive impact on the electrophoretic coating effect. By regulating the uniformity of the oxide on the surface of the titanium anode, the electric field distribution can be further optimized and local discharge phenomena can be reduced, thereby improving the production efficiency of electrophoretic coating.
The surface treatment technology of titanium anode for electrophoretic coating directly affects their service life. Sandblasting and acid etching not only enhance the bonding force of the mixed oxide coating but also reduce electrophoretic side reactions and energy consumption.
Significance of Application of Titanium Anode for Electrophoretic Coating
Titanium anode for electrophoretic coating, with their excellent material properties of conductivity and corrosion resistance, exhibit significant application value in the field of electrophoretic coating. Their outstanding corrosion resistance stems from the oxide film on the surface of the titanium alloy. This oxide film not only possesses excellent chemical stability but also can maintain structural integrity in complex environments, effectively resisting corrosion from chemical media during the coating process.
The high conductivity of titanium anode for electrophoretic coating benefits from the precious metal oxide coating on the surface, such as the IrO₂+Ta₂O₅+TiO₂ composite structure, which enhances the electrical conductivity of the electrode, reduces the oxygen evolution potential, and ensures uniform current distribution during the electrophoresis process. The excellent mechanical properties of titanium alloys can withstand the mechanical stress in the coating process, ensuring that the titanium anode for electrophoretic coating maintain shape stability and operational safety during long-term use.
The introduction of titanium anode for electrophoretic coating has effectively reduced the energy consumption and costs of electrophoretic coating. Their stability prolongs the service life of the electrodes, reducing downtime losses and material waste caused by frequent replacements. In addition, the low oxygen evolution potential characteristic of titanium anode for electrophoretic coating helps inhibit the occurrence of side reactions and reduce energy consumption. In practical applications, by designing titanium anodes with an intermediate layer coating, the electrochemical activity of the electrode surface can be further regulated, enabling the coating process to operate efficiently at a lower voltage, thereby reducing unit energy consumption by more than 20%. This performance advantage is suitable for large-scale applications in automotive coating.
Basic Principles of Electrophoretic Coating
Electrophoretic coating, as an efficient surface treatment technology, its core principle is based on the synergistic mechanism of colloid chemistry and electrochemistry. In the process, the film-forming resins and pigments/fillers in the coating are dispersed by specific solvents to form stable charged colloidal particles. When the workpiece is placed in an electric field as an electrode, these charged particles migrate directionally under the drive of Coulomb force.
- In anodic electrophoresis, the workpiece acts as the anode, and the anionic resin in the coating moves directionally toward it and undergoes electrodeposition.
- In cathodic electrophoresis, the workpiece serves as the cathode. The coating formation process consists of four stages: electrophoresis, electrodeposition, electrochemical decomposition, and film formation and curing.
The electric field strength has a significant regulatory effect on the particle migration behavior. As the voltage increases, the enhanced electric field force can accelerate the particle movement. However, excessively high voltage will lead to an excessively large local current density, causing the Joule heating effect and secondary dissolution. When the voltage exceeds the critical value, the deposition rate shows a non-linear downward trend, which is related to the hindrance of particle transport by bubble precipitation in the solution. In addition, the uniformity of the electric field distribution directly affects the thickness consistency of the coating. Especially for workpieces with complex shapes, it is necessary to optimize the electric field distribution through electrode design to avoid the edge effect.
Titanium anode selection for electrophoretic coating
The selection and design of titanium anode for electrophoretic coating in electrophoretic painting need to comprehensively consider electrochemical characteristics, process requirements, and actual application conditions.
- For different electrophoresis systems (such as cathodic electrophoresis or anodic electrophoresis), it is necessary to select titanium-based materials with matching electrocatalytic activity. For example, in acidic or neutral systems, titanium anodes with precious metal oxides such as ruthenium and iridium are usually chosen, while in alkaline systems, iridium-tantalum coated anodes can be selected, which can maintain stable conductivity and durability in high pH environments.
- The structural design of titanium anode for electrophoretic coating must balance the uniformity of current distribution and mechanical strength. For coating large workpieces, a flat plate structure is often adopted. By optimizing the electrode spacing and arrangement, the smooth circulation of the bath solution is ensured, and deviations in local current density are reduced. For example, in continuous production lines, titanium anode for electrophoretic coating can be distributed in a stepped manner along the direction of workpiece movement. The uniformity of the electric field distribution is verified through computer simulation, thereby improving the consistency of the coating thickness. For workpieces with complex shapes, modular anode assemblies can be designed, and precise coverage of the coating area can be achieved by adjusting the unit structure.
- In automotive electrophoretic coating, the choice of immersion method is closely related to the layout of titanium anodes used in electrophoretic coating. For workpieces such as car bodies, which have large flat surfaces and use gray paint, if they are immersed with electricity, obvious step marks are likely to occur, seriously affecting the appearance and uniformity of the coating. By energizing after immersion, the titanium anode for electrophoretic coating can avoid the workpiece’s immersion path, effectively reducing the occurrence of step marks, ensuring that the coating on the car body surface is uniform and smooth, and laying a good foundation for subsequent processes. The titanium anodes used in automotive electrophoretic coating generally have a diameter of Φ50×2mm or Φ60×3. These titanium anode tubes not only ensure the strength of the anode but also enable efficient electrochemical reactions in limited spaces. The anode cover has a diameter of Φ75mm, which matches the anode diameter, can effectively protect the anode, and at the same time provide a good environment for the circulation of electrolyte and ion exchange. The effective membrane area is 0.236L (where L is the anode length), and this parameter ensures that the anode can fully contact the electrolyte, improving ion exchange efficiency. The membrane resistance is ≤12Ω・cm; low membrane resistance means less power loss during the electrochemical reaction, enabling more efficient electrophoretic coating. This anode is also compatible with ion exchange membranes; regardless of the type of ion exchange membrane, it can perform at its best, providing a stable ion migration channel for electrophoretic coating.
- In the continuous selective anodic electrophoresis process for titanium alloy smart watch components, the titanium anode system used in electrophoretic coating achieves precise coverage of the coating on the surface of complex workpieces and consistency in quality between batches by optimizing the electrode structure and current distribution.
The setting of process parameters for titanium anodes in electrophoretic coating is a key link in achieving an efficient and stable coating process. In the electrophoretic coating process, the reasonable matching of parameters such as voltage, time, and temperature directly affects the uniformity, compactness, and adhesion of the coating film. The physical and chemical properties of titanium anode for electrophoretic coating (such as high conductivity, corrosion resistance, and low oxygen evolution potential) provide unique advantages for optimizing process parameters. In terms of voltage setting, the optimal range must be determined based on the characteristics of the electrophoretic paint and the requirements of the workpiece. Generally, the voltage range for electrophoretic coating is 20-50V, and the specific value needs to be verified through experiments. Excessively high voltage may lead to an excessively large local current density in the anode area, causing roughness or burning of the electrophoretic layer, while accelerating the peeling of the oxide film on the surface of the titanium anode. On the other hand, too low a voltage will prolong the coating time and reduce production efficiency. In the application of titanium anode for electrophoretic coating, their low oxygen evolution potential characteristic can effectively inhibit the anodic oxidation reaction. Therefore, the upper limit of the voltage can be appropriately increased on the premise of ensuring coating quality to shorten the process cycle.
